Plastic feet and caps

Spacers to protect the formwork and to secure the reinforcement.
Suitable for mounting of tube baskets.
Other diameters on request

Data sheet

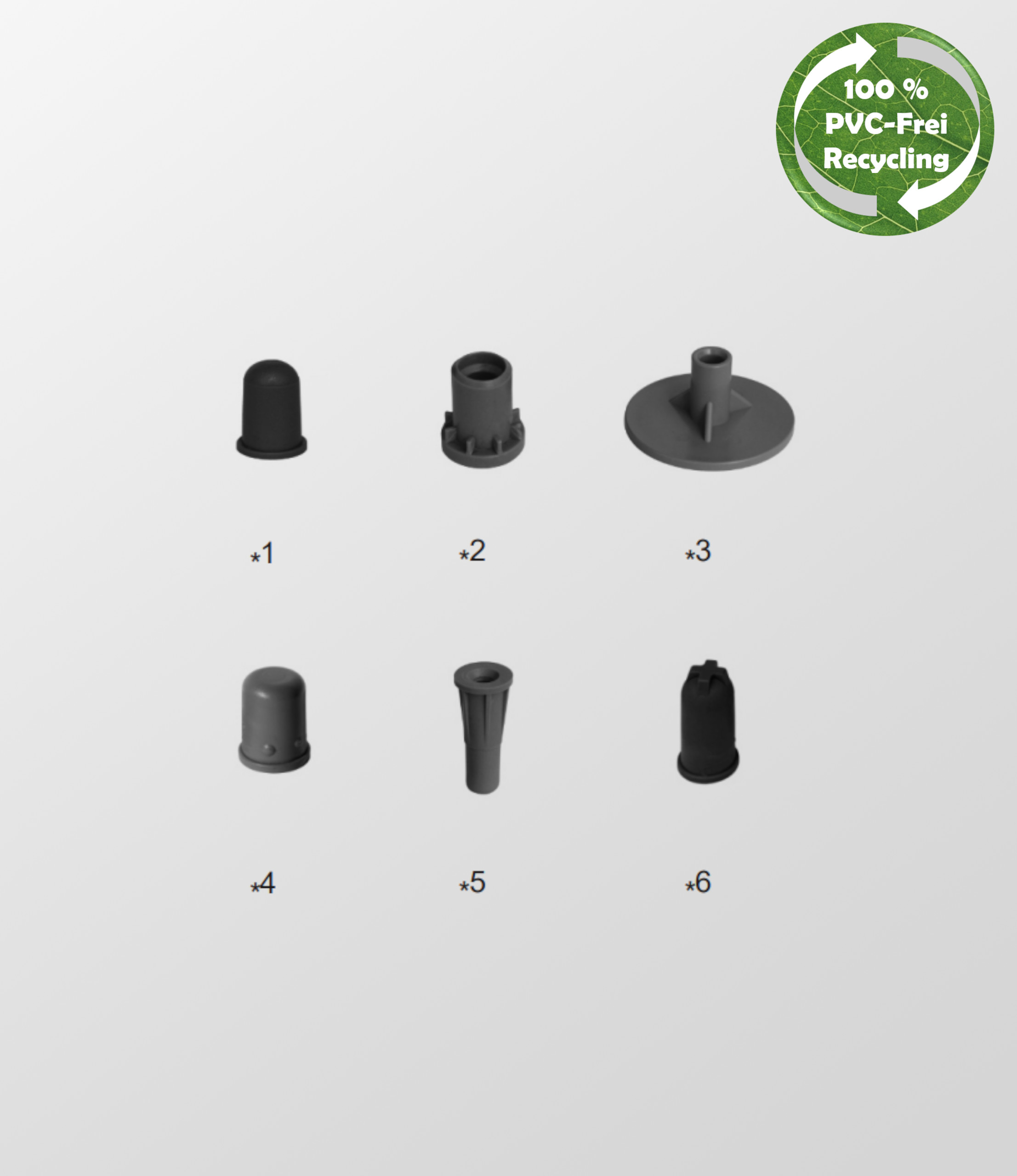

Item Number	Foot form	Steel Ø Dimension in mm	Concrete cover Dimension in mm	Bag PU in piece	Pallet PU in piece
425.k05	*¹round	5	3	5.000	100.000
425.6-25	*⁵8 mm ribbed	6	25	3.000	60.000
425.k07	*¹round	7	3	2.500	50.000
425.k0712	*¹round	7	12	1.000	50.000
425.k08	*⁶ 10 mm cross shaped	8	8	2.000	80.000
425.k10	*⁶ 10 mm cross shaped	10	8	2.000	80.000
425.rs6	*²14 mm flat ribbed	6	3	10.000	150.000
425.rs8	*⁴10 mm flat	8	3	2.500	50.000
425.rs10	*⁴10 mm flat	10	3	2.500	50.000
425.rs645	*³47 mm flat	6	3	10.000	50.000
425.ds48	*¹round	4 – 8	8	500	20.000
